Technical Specifications
| Model: NEC M751-AVT3 Specifications | |
| Panel Spec | |
| Display Type | TFT-LCD |
| Size | 75" |
| Touch Screen | No |
| Resolution | 3840 x 2160 (UHD) |
| Aspect Ratio | 16 : 9 |
| Color Depth | 10 bit |
| Contrast Ratio | 4000 : 1 |
| Backlight | LED |
| Viewing Angle | 178° (H), 178° (V) |
| Tuner | |
| ATSC/NTSC Tuner | Yes |
| Interfaces | |
| Ethernet | 1 x RJ-45 Female, 10 / 100 / 1000 BaseT |
| USB | 2 x USB Type A |
| Power Inputs | |

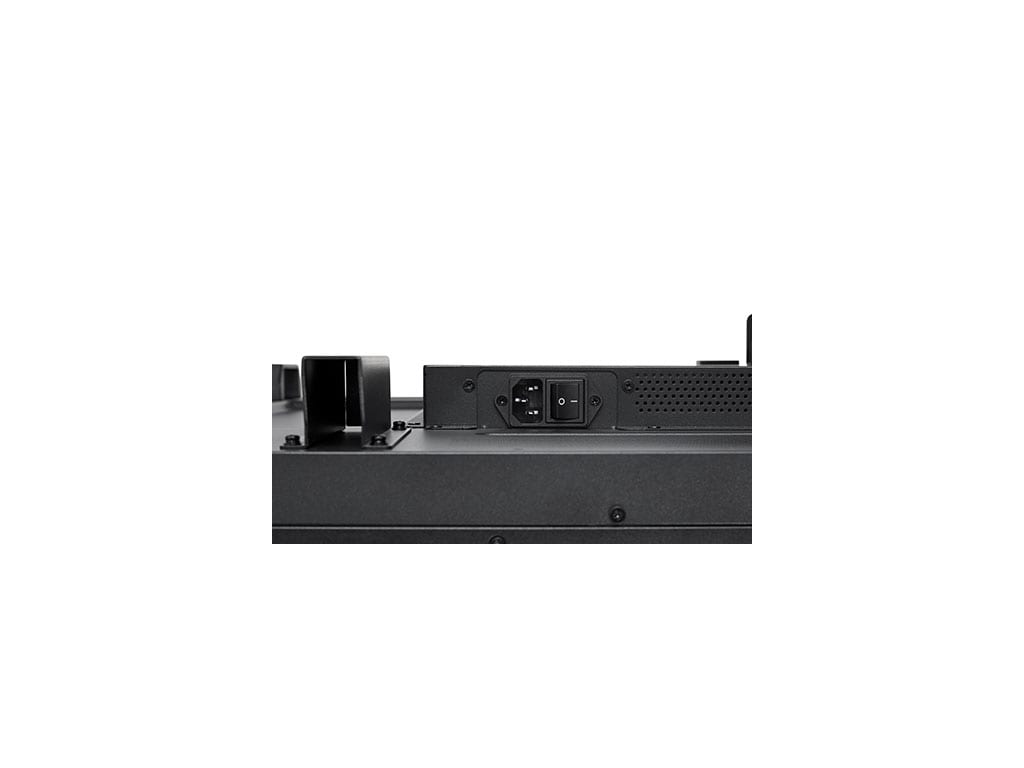

| Power Consumption | 220W |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 20 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 56.2 kg ( 123.9 lb ) |
| Dimensions (L x W x H) | 1676 x 961 x 88.6 mm (66 x 37.8 x 3.5 in.) |
Resources
Description

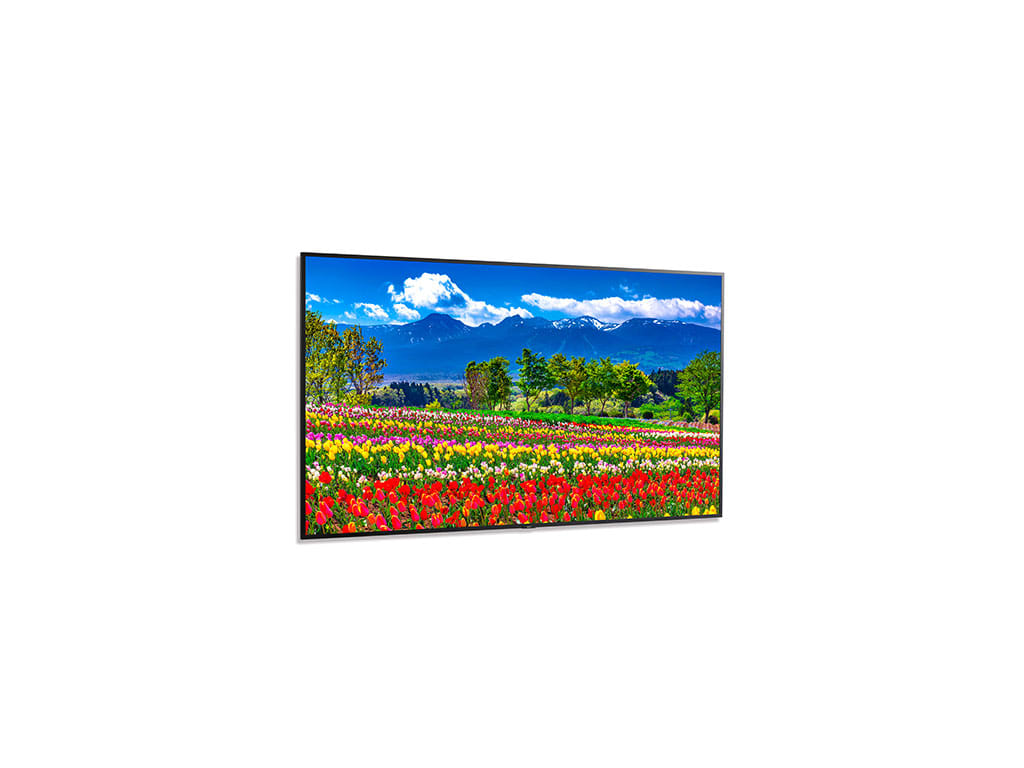

The NEC M751-AVT3 is a 75" ultra high-definition display with ATSC/NTSC tuner. Create pixel-perfect imagery with the high-end panel quality of the new fully professional large sized NEC M series large format displays. By implementing premium features and focusing on creating an impressionable presentation and digital signage experience, the M series gives customers an elite display option. With the proprietary SpectraView Engine capabilities, these displays offer more color capabilities than ever before. On top of that, these products allow customers the modular capabilities to customize their products based on their needs and applications.
The new series contains a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters - the message. Robust connectivity options allow customers to have up-to-date connectivity options while also allowing for enhanced daisy chain capabilities when tying displays together for video or control signal distribution. The NEC M series boasts 500 cd/m² brightness which is ideal for a majority of high-end presentation applications in corporate, command and control, higher education, and healthcare environments when high-end and feature-rich displays are necessary to convey important messaging.
- Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
- 4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before

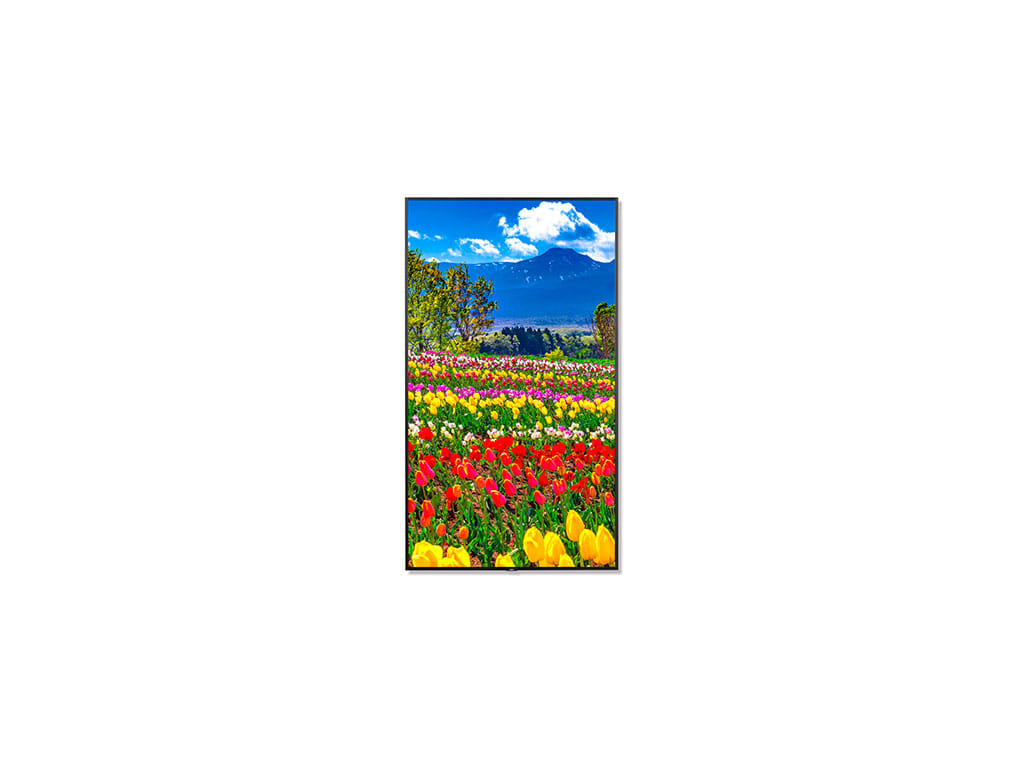

- Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
- Integrated DS1-TM01 ATSC/NTSC Tuner in SDM-S Slot

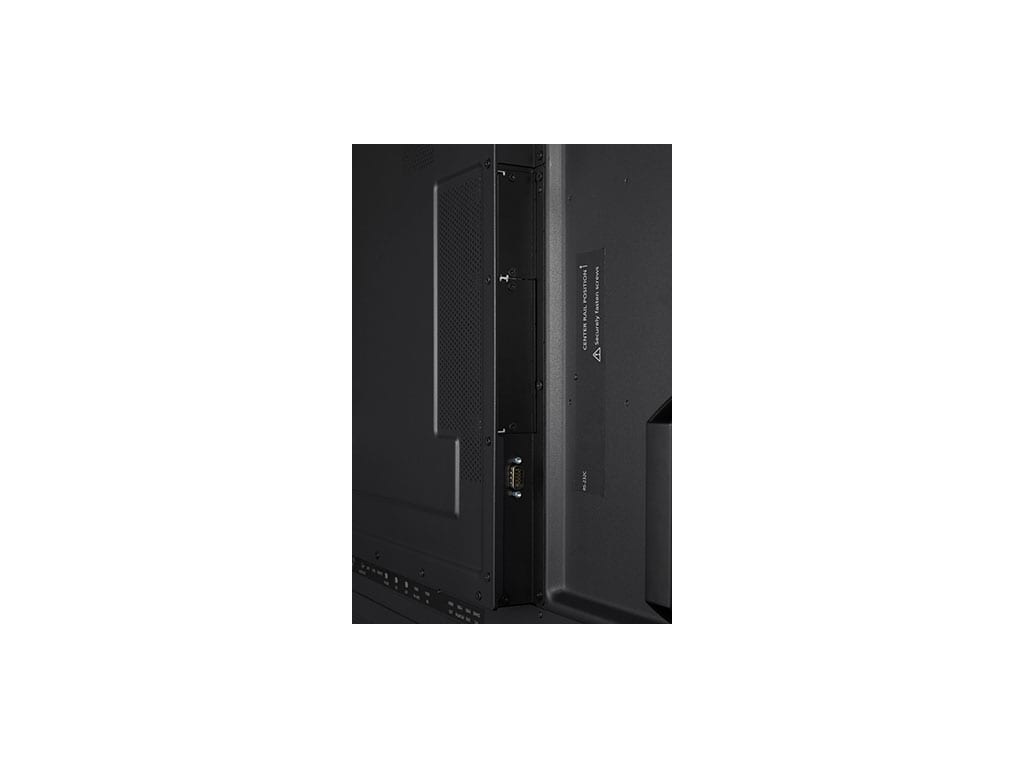

- Raspberry Pi Compute Module 4 allows for future-proof expansion and NEC Mediaplayer support through proprietary slot
- Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C
- 500 cd/m2 brightness and HDR compatibility will capture the attention of the audience in almost any situation

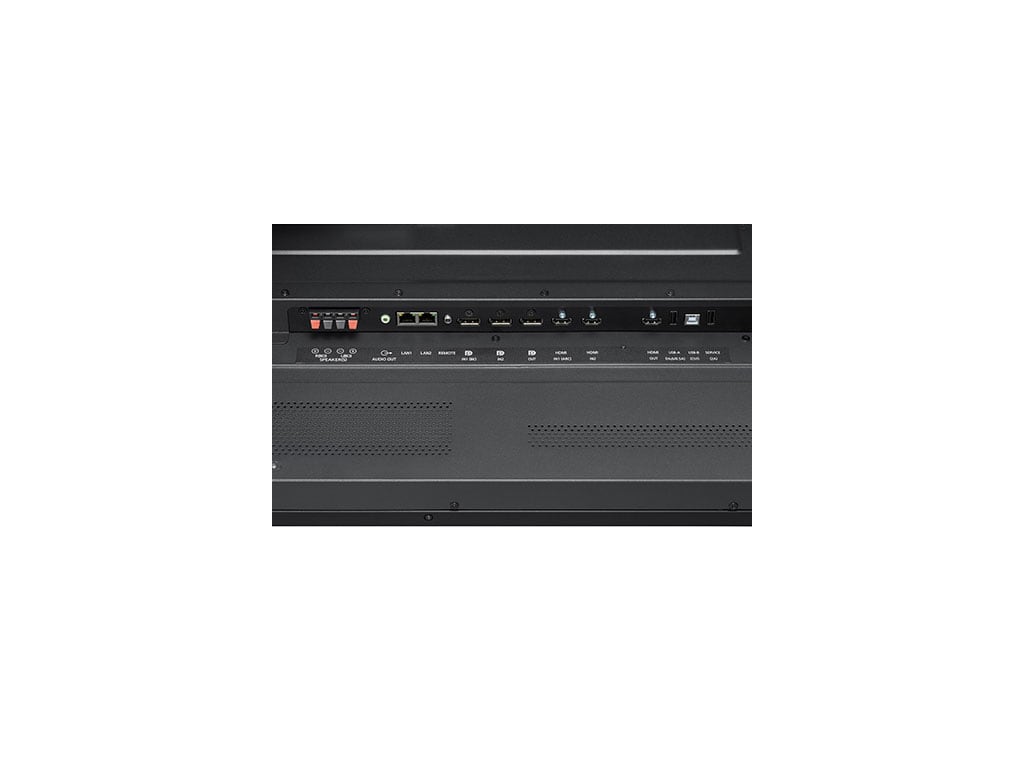

- Enhanced Daisy Chain Capabilities through both HDMI and DisplayPort Out Connections
- Multi Picture Mode allows for the display to show multiple simultaneous images on the screen at once without the use of additional software or hardware
- Failover Capabilities with full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
- Energy Star 8.0 Certified Product
- Full 3-year commercial warranty to allow for peace of mind and protection of your investment
- NaViSet Administrator 2 Free software solution that greatly eases the administration and management of larger display device installations
Technologies:
- Cooling Method: Multiple integrated temperature sensors and fans for active cooling and real-time temperature measuring to ensure that the display stays cool for extended runtimes.
- 4K Resolution: Provides the ultimate in screen clarity.
- Raspberry Pi Compute Module Compatible: The Raspberry Pi Compute Module 4 NEC Edition is the smartest combination of computing power with professional yet cost-effective Signage displays for use in retail environments, passenger information, quick service menu boards, and so many more applications.
- Human Sensor (Large Format Displays): Upon sending movement, allows for automatic adjustment to certain settings and features in the display which can lead to targeted messaging for dual-purpose display in digital signage or presentation applications.
- Multi Picture Mode: Simultaneously showcase up to 4 images on the display without the addition of third-party hardware or software processing.
- Round-The-Clock Scheduler: Allows for advanced scheduling of monitor powering up/down, increasing panel lifetime, reducing power consumption, and saving the time and expense of finding and purchasing a third-party scheduling solution.
- SpectraView Engine Technology: NEC Display’s proprietary integrated color management system.
- Dual Daisy Chain Capabilities: These displays have the ability to support both HDMI and DisplayPort daisy chaining if necessary.
In the Box
Frequently Asked Questions
Q: What is the NEC M751-AVT3 - 75" UHD Professional Display with ATSC/NTSC Tuner?A: The NEC M751-AVT3 is a professional-grade display designed for various applications. It features a 75-inch Ultra HD (UHD) display with an ATSC/NTSC tuner, providing exceptional image quality and versatile functionality.
Q: What are the benefits of using the NEC M751-AVT3?A: The NEC M751-AVT3 offers numerous benefits for users in different scenarios: * Stunning visual experience: With its Ultra HD resolution, the display delivers sharp and vibrant images, enhancing the viewing experience for presentations, videos, and other content. * Versatile tuner functionality: The built-in ATSC/NTSC tuner allows users to access and enjoy over-the-air TV channels without the need for an external tuner or set-top box. * Wide range of applications: The NEC M751-AVT3 can be used in various settings such as conference rooms, retail spaces, educational institutions, and more, providing a versatile solution for different needs. * Reliable and durable: Designed for professional use, this display is built to last and withstand continuous operation, ensuring reliability and longevity.
Q: What are the key features of the NEC M751-AVT3?A: The NEC M751-AVT3 is packed with features that make it a top choice for professional displays: * 75-inch Ultra HD display: The large screen size and high resolution offer an immersive visual experience, making it ideal for presentations, digital signage, and other applications. * ATSC/NTSC tuner: The built-in tuner allows for easy access to over-the-air TV channels, providing entertainment and information without the need for additional equipment. * Multiple connectivity options: The display offers a range of inputs including HDMI, DisplayPort, and USB, enabling seamless connection to various devices such as laptops, media players, and more. * Advanced image and color control: Users can fine-tune the display settings to achieve optimal image quality and color accuracy, ensuring content is presented exactly as intended. * Energy-efficient design: The NEC M751-AVT3 is ENERGY STAR certified, consuming less power while maintaining high performance, reducing environmental impact and operating costs.
Q: What are some common applications for the NEC M751-AVT3?A: The NEC M751-AVT3 can be utilized in a wide range of scenarios, including: * Conference rooms and boardrooms: The large display size and high resolution make it perfect for presentations, video conferences, and collaborative meetings. * Retail and hospitality: The display can be used for advertising, digital signage, and providing information to customers in retail stores, hotels, and restaurants. * Educational institutions: The NEC M751-AVT3 is suitable for classrooms, lecture halls, and training centers, enhancing learning experiences with its immersive visuals. * Control rooms and command centers: The display's reliability and advanced features make it an excellent choice for monitoring and surveillance applications.
Q: How user-friendly is the NEC M751-AVT3?A: The NEC M751-AVT3 is designed with user convenience in mind. It offers intuitive controls and a user-friendly interface, allowing for easy setup and operation. Additionally, the display comes with comprehensive user manuals and technical support to assist users in utilizing its features effectively.
