Technical Specifications
| Model: AG Neovo RX-22G Specifications | |
| Panel Spec | |
| Display Type | TN Panel |
| Size | 22" |
| Resolution | 1920 x 1080 (1080p) |
| Aspect Ratio | 16 : 9 |
| Color Depth | 8 bit |
| Contrast Ratio | 800 : 1 |
| Backlight | LED |
| Viewing Angle | ± 85° (H), ± 85° (V) |
| Physical Properties | |
| Housing | Metal Casing |
| Weight | Unknown |
| Dimensions (L x W x H) | Unknown |
Resources
Description

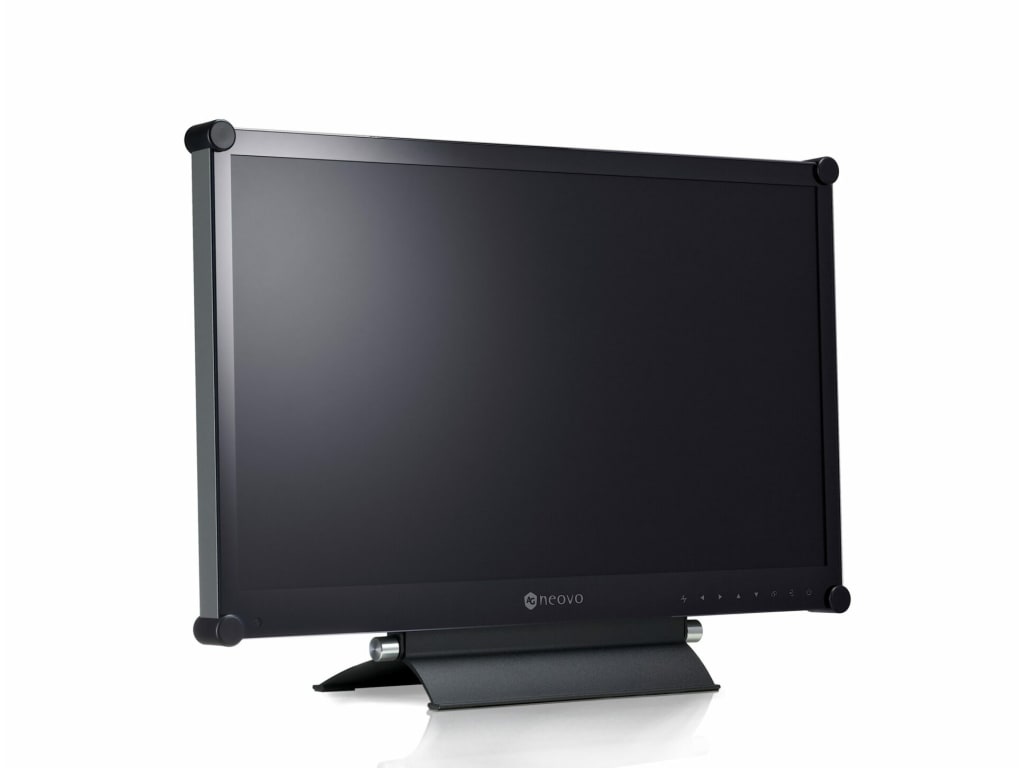

The AG Neovo RX-22G is a 22-inch security monitor designed for video surveillance. With its Full HD 1080p resolution and industrial-grade components, this monitor delivers high performance and stable image quality. It features AG Neovo's patented Anti-Burn-in technology, which prevents image ghosting, and a NeoV Optical Glass screen that protects against scratches and damages. The metal casing adds durability, making it suitable for critical environments.

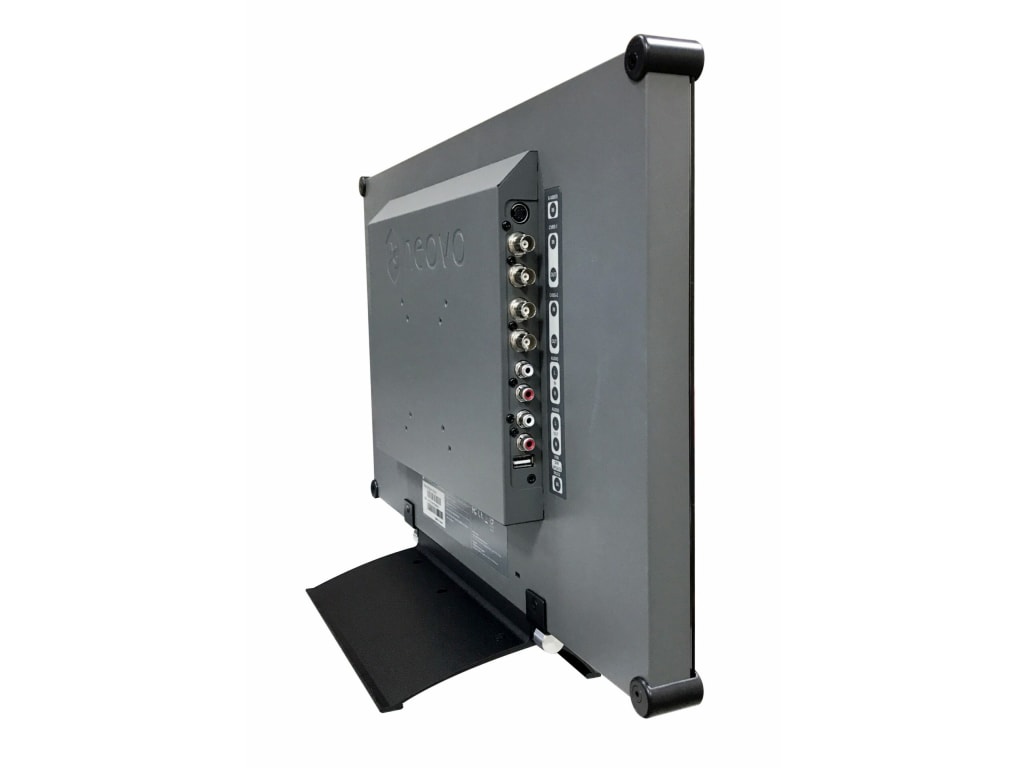

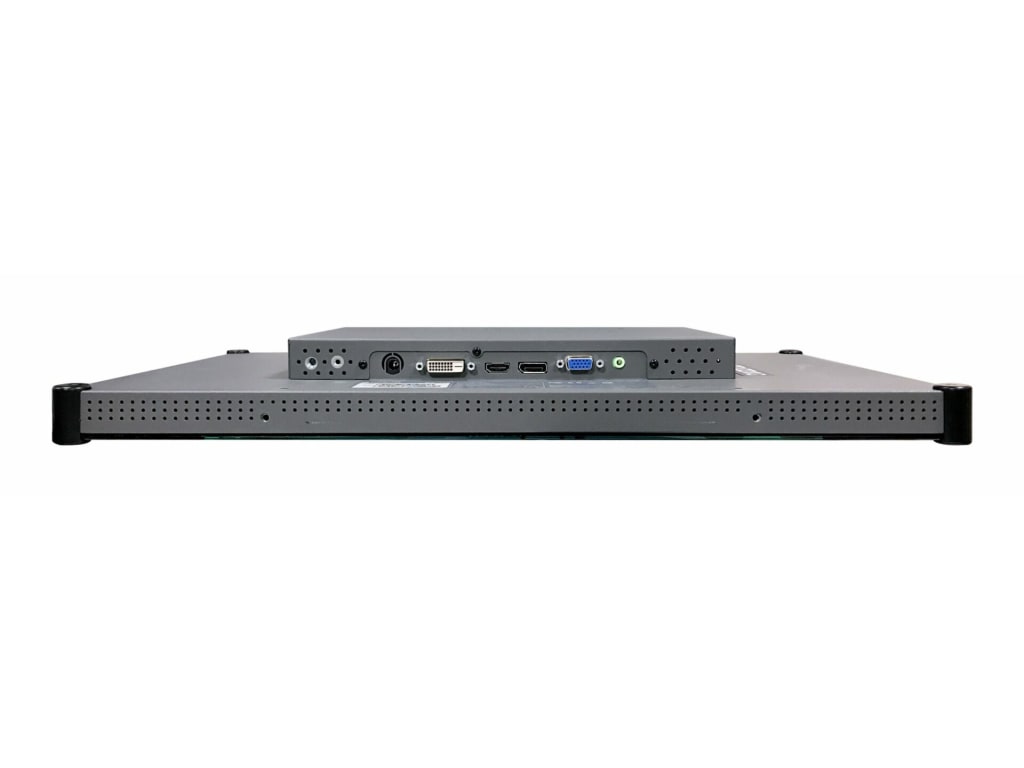

The RX-22G security monitor offers versatile connectivity options, including VGA, DVI, HDMI, DisplayPort, Composite (BNC), and S-Video inputs. It also features a Composite (BNC) passive loop-through output port, allowing for instant monitoring and testing while feeding videos to other devices. With its super-resolution technology, the monitor enhances the clarity of security footage in real-time, presenting more detail in layered texture. AG Neovo's pre-configured CCTV mode maximizes image clarity in low-light footage, while Night Mode ensures clear viewing in dark environments. The monitor's robust design, including the NeoV Optical Glass screen and durable metal casing, makes it suitable for 24/7 use in challenging conditions. Additionally, the PID Command & Ctrl software enables easy control and integration of the monitor via RS232 connections.
In the Box
Frequently Asked Questions
Q: What is the AG Neovo RX-22G - 22" 1080p Security Monitor with Metal Casing and TN Panel?A: The AG Neovo RX-22G is a high-quality security monitor designed for various security applications. It features a 22-inch 1080p display with a TN panel, a durable metal casing, and advanced security features.
Q: What are the benefits of using the AG Neovo RX-22G security monitor?A: The AG Neovo RX-22G security monitor offers numerous benefits for users in different scenarios: * Enhanced security: The monitor's advanced security features, such as video motion detection and image enhancement, help ensure maximum security and surveillance effectiveness. * Clear and detailed visuals: The 1080p resolution and TN panel technology deliver sharp and vibrant visuals, allowing users to easily monitor and analyze surveillance footage. * Durability: The metal casing provides robust protection against potential damage, making it suitable for various environments and ensuring long-lasting performance. * Versatile connectivity: With multiple connectivity options, including HDMI and VGA, users can easily connect the monitor to various devices and surveillance systems. * Wide viewing angles: The TN panel offers wide viewing angles, ensuring that the monitor's content is visible from different perspectives.
Q: What are the key features of the AG Neovo RX-22G security monitor?A: The AG Neovo RX-22G security monitor boasts several key features that make it an excellent choice for security applications: * 22-inch 1080p display: The monitor provides a clear and detailed view of surveillance footage. * TN panel technology: The TN panel ensures fast response times, accurate colors, and wide viewing angles. * Metal casing: The durable metal casing protects the monitor from potential damage and ensures its longevity. * Advanced security features: Video motion detection, image enhancement, and other security features help optimize surveillance effectiveness. * Multiple connectivity options: HDMI, VGA, and other connectivity options offer flexibility in connecting the monitor to different devices and surveillance systems.
Q: What are the typical applications for the AG Neovo RX-22G security monitor?A: The AG Neovo RX-22G security monitor can be used in various security scenarios, including: * Home security systems * Office and commercial surveillance * Retail loss prevention * Industrial monitoring * Public area surveillance * Traffic monitoring * Control room monitoring
Q: Is the AG Neovo RX-22G security monitor user-friendly?A: Absolutely! The AG Neovo RX-22G security monitor is designed to be user-friendly and easy to operate. It provides intuitive controls and a user-friendly interface, ensuring a hassle-free experience for users of all levels of expertise.
