Technical Specifications
| Model: AG Neovo MD-2702 - 27" Full HD Clinical Review Monitor | |
| Panel Spec | |
| Display Type | TFT-LCD |
| Size | 27" |
| Touch Screen | No |
| Resolution | 1920 x 1080 (Full HD) |
| Aspect Ratio | 16 : 9 |
| Color Depth | 8 bit |
| Contrast Ratio | 1000 : 1 |
| Backlight | LED |
| Viewing Angle | 178° (H), 178° (V) |

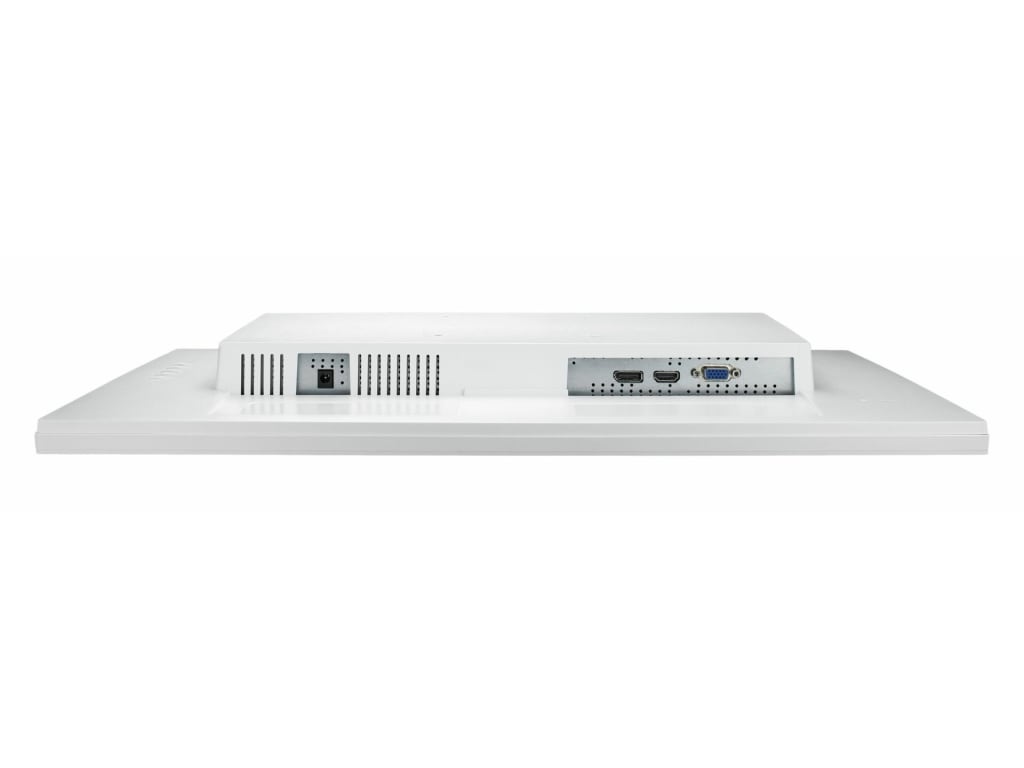

| Interfaces | |
| HDMI | 1 x HDMI 1.4 |
| DisplayPort | 1 x DisplayPort 1.2 |
| VGA | 1 x VGA |
| DVI | 1 x DVI-D |
| Power Inputs | |
| Power Consumption | 35W |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 10 - 90% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 6.5 kg (14.33 lb) |
| Dimensions (L x W x H) | 63.6 x 37.4 x 6.3 cm (25.04 x 14.72 x 2.48 in.) |

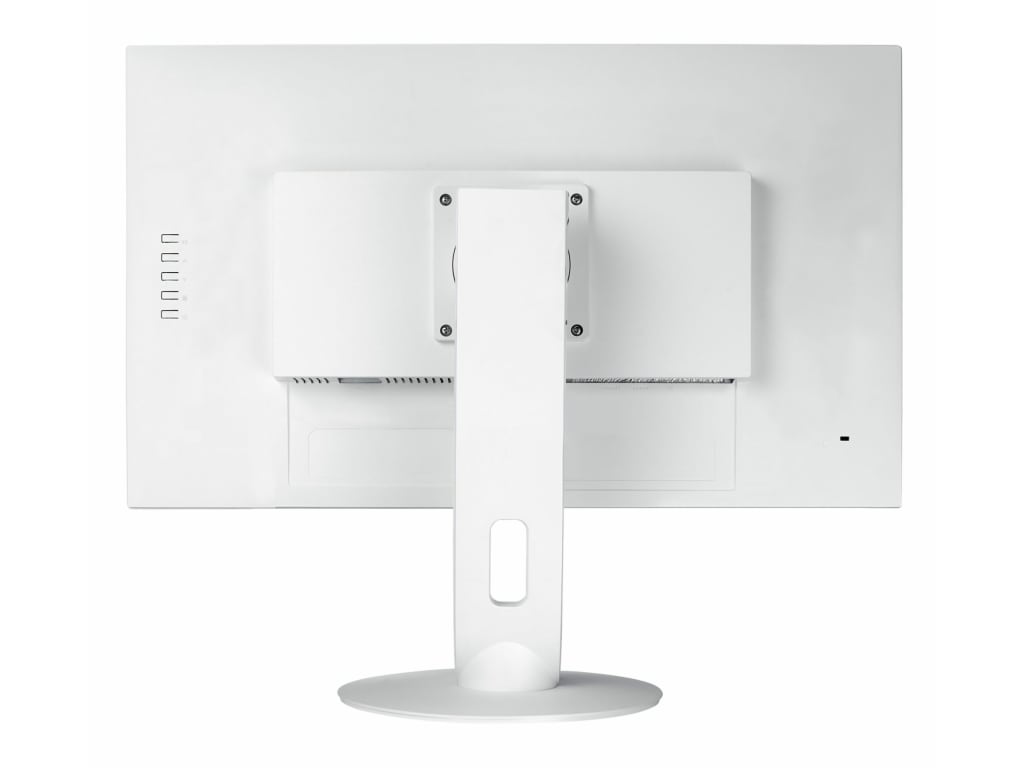

| VESA Mount | 100 x 100 mm |
| Certifications | CE, CB, FCC, RoHS |
Resources
Description

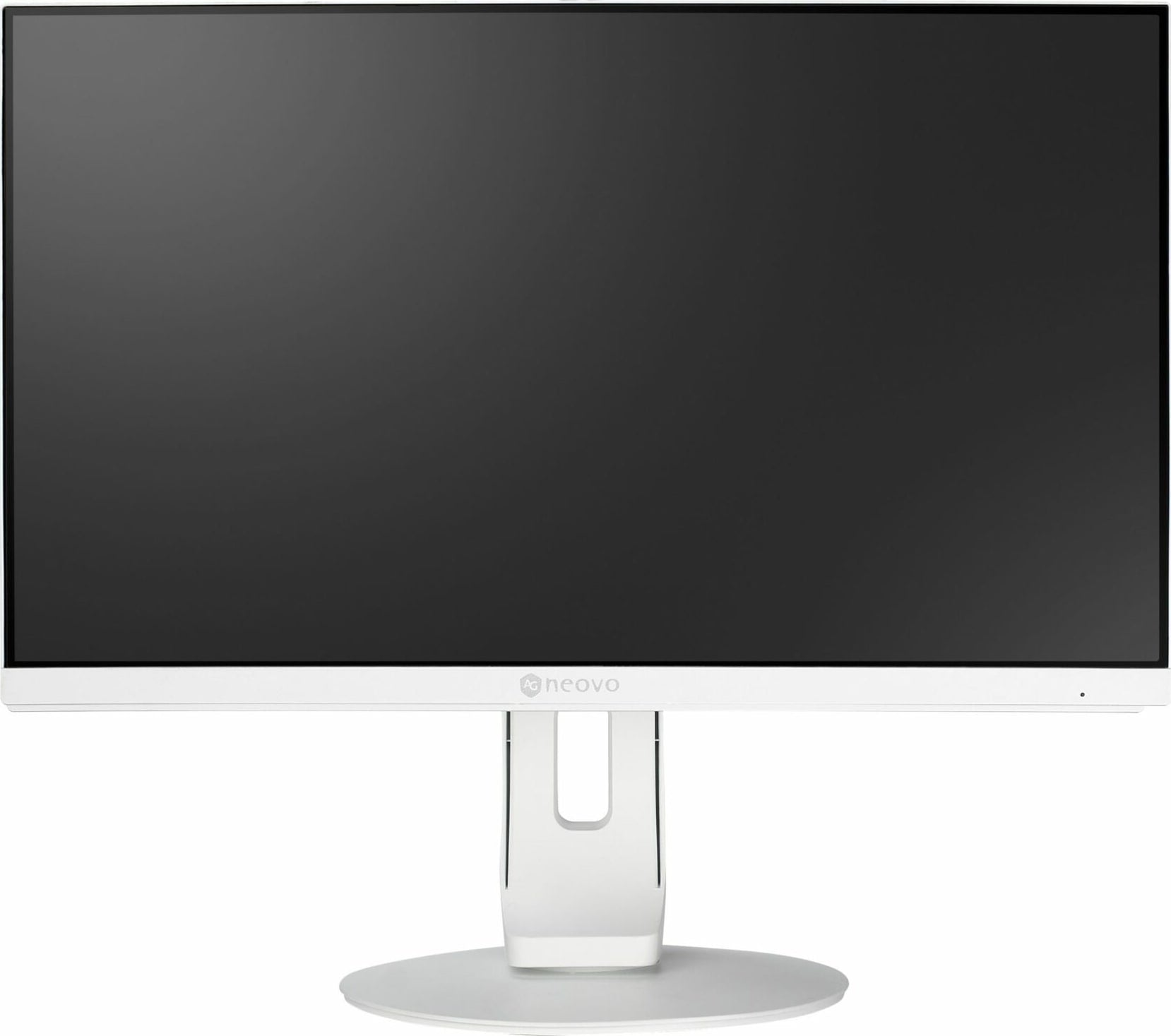

Introducing the AG Neovo MD-2702, a top-of-the-line clinical review monitor designed to meet the demanding needs of healthcare professionals. With its 27" Full HD display and 2MP resolution, this monitor delivers exceptional image quality and clarity, allowing for accurate and precise medical image interpretation. The VA panel technology ensures wide viewing angles of 178°, providing consistent image quality from any angle.
The AG Neovo MD-2702 is not only technologically advanced, but also highly versatile. It is compatible with DICOM Part 14, ensuring accurate grayscale reproduction for medical imaging applications. The monitor is also equipped with a medical adapter certified to the IEC/EN 60601-1 medical standard, guaranteeing safe and reliable operation in healthcare environments.
- Full HD 1920 x 1080 resolution for crystal-clear image quality

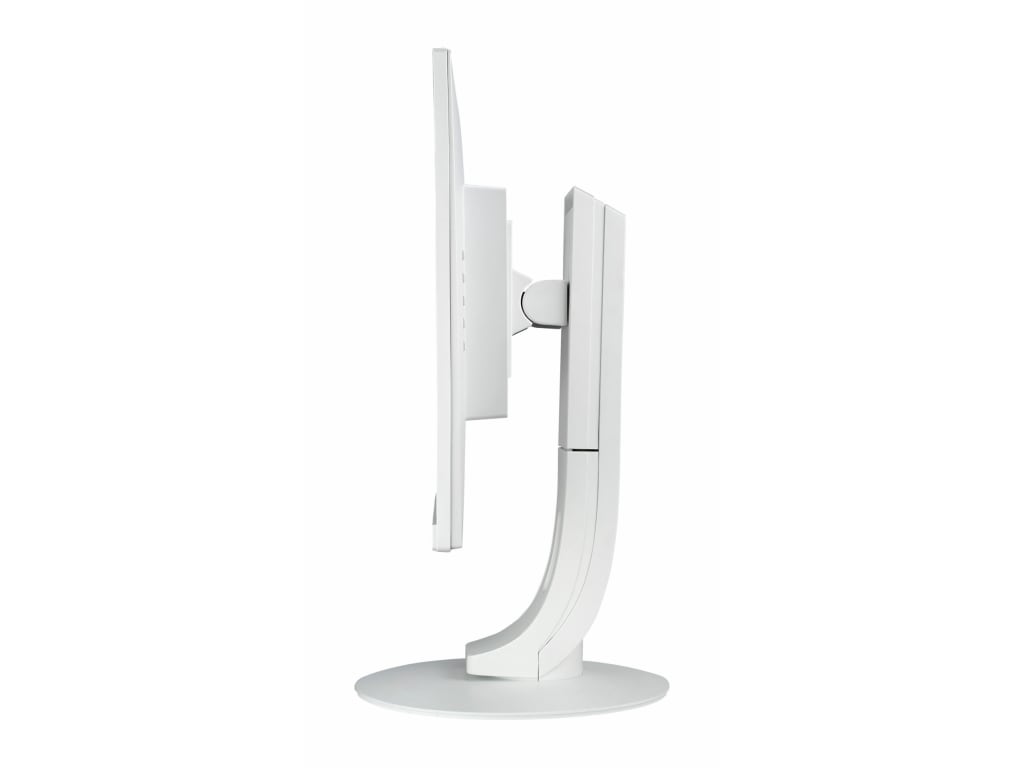

- Tilt, Pivot, Swivel, and Height adjustment ergonomic stand design for optimal viewing comfort
- VESA mounting for flexible installation in healthcare settings
- 16.7M display color for vibrant and lifelike visuals
- Exceptional 178° viewing angles for consistent image quality from any angle
In the Box
Frequently Asked Questions
Q: What is the AG Neovo MD-2702 - 27" Full HD Clinical Review Monitor?A: The AG Neovo MD-2702 is a high-quality clinical review monitor specifically designed for medical professionals. It features a 27-inch Full HD display with exceptional image clarity and color accuracy, making it ideal for viewing medical images and diagnostic scans.
Q: What are the benefits of using the AG Neovo MD-2702?A: The AG Neovo MD-2702 offers several benefits for medical professionals, including: * Accurate image reproduction: The monitor's advanced imaging technology ensures accurate reproduction of medical images, allowing for precise analysis and diagnosis. * High-resolution display: With its Full HD resolution, the MD-2702 provides sharp and detailed images, enabling healthcare professionals to see even the smallest details. * Wide viewing angles: The monitor's wide viewing angles allow multiple users to view the screen simultaneously without any loss of image quality. * Anti-glare coating: The MD-2702 is equipped with an anti-glare coating, reducing reflections and ensuring optimal visibility even in brightly lit environments. * DICOM preset mode: The monitor includes a DICOM preset mode, which ensures consistent and accurate grayscale display for medical imaging applications.
Q: What are the key features of the AG Neovo MD-2702?A: The AG Neovo MD-2702 offers a range of features that enhance its usability and performance in clinical settings, including: * 27-inch Full HD display with a resolution of 1920 x 1080 pixels. * DICOM preset mode for accurate grayscale display. * Anti-glare coating to minimize reflections and improve visibility. * Wide viewing angles of 178 degrees horizontally and vertically. * Multiple connectivity options, including HDMI, DisplayPort, and DVI. * VESA mount compatibility for flexible installation.
Q: In what scenarios can the AG Neovo MD-2702 be beneficial?A: The AG Neovo MD-2702 is highly beneficial in various medical scenarios, such as: * Radiology and diagnostic imaging: The monitor's high-resolution display and accurate image reproduction make it ideal for reviewing X-rays, CT scans, and MRI images. * Telemedicine and teleconsultation: The MD-2702's wide viewing angles and video connectivity options enable seamless video conferencing and remote collaboration between healthcare professionals. * Operating rooms and surgical suites: The monitor's anti-glare coating and wide viewing angles ensure optimal visibility during surgeries and procedures. * Medical education and training: The MD-2702's detailed image quality and DICOM preset mode make it suitable for teaching and learning purposes in medical schools and training centers.
Q: How user-friendly is the AG Neovo MD-2702?A: The AG Neovo MD-2702 is designed with user-friendliness in mind. It features an intuitive on-screen display menu that allows for easy adjustment of settings, and its multiple connectivity options make it compatible with various devices and systems. Additionally, the monitor's durable construction ensures long-lasting performance in demanding clinical environments.
